DTH Drill Pipe Manufacturer | LEANOMS
DTH Drill Pipe Manufacturer for Mining, Water Well, and Construction Drilling
LEANOMS is a professional DTH Drill Pipe Manufacturer supplying high-strength drill pipes for down-the-hole drilling systems. Our DTH drill pipes are used to connect the drilling rig, DTH hammer, and drill bit, helping transmit rotation torque, feed force, compressed air, and flushing energy to the bottom of the borehole.
For drilling contractors and distributors, drill pipe quality directly affects drilling stability, thread life, air delivery, hole straightness, and cost per meter. A low-quality drill pipe may lead to thread galling, air leakage, pipe bending, connection failure, premature wear, and unexpected downtime. LEANOMS focuses on practical manufacturing control, specification matching, and reliable bulk supply for overseas drilling projects.
| Product Name | DTH Drill Pipe / DTH Drill Rod / Down-the-Hole Drill Pipe |
| Supplier Type | DTH drill pipe manufacturer and factory-direct supplier |
| Main Material | High-strength alloy steel; material grade can be selected according to project requirement |
| Common Length | 1000 mm, 1500 mm, 2000 mm, 3000 mm, 5000 mm, 6000 mm; custom length available |
| Common Diameter | 76 mm, 89 mm, 102 mm, 114 mm, 127 mm, 140 mm; custom diameter available |
| Common Thread | 2 3/8" API REG, 2 7/8" API REG, 3 1/2" API REG, 4 1/2" API REG, API IF, and custom thread options |
| Key Application | Water well drilling, mining, quarrying, geothermal drilling, geotechnical drilling, construction drilling |
| Customization Support | Diameter, length, wall thickness, thread type, wrench flat, color, logo marking, packing |
What Does a DTH Drill Pipe Do?
A DTH drill pipe is a tubular component used in down-the-hole drilling operations. It serves as the main connection between the drilling rig and the DTH hammer. During drilling, it helps transfer torque and feed force while delivering compressed air to power the hammer and remove rock cuttings from the borehole.
Unlike ordinary steel pipes, DTH drill pipes must withstand repeated torque, vibration, axial load, air pressure, bending stress, and harsh site conditions. For this reason, buyers should evaluate material quality, pipe straightness, thread precision, welding strength, wall thickness, and surface protection before placing an order.
Why Choose LEANOMS as Your DTH Drill Pipe Manufacturer?
1. Controlled Material Selection
Material selection is the foundation of drill pipe performance. LEANOMS selects high-strength alloy steel according to drilling conditions, diameter, wall thickness, thread type, and customer requirements. For demanding drilling applications, stronger material grades can help improve wear resistance, toughness, and connection reliability.
2. In-House Heat Treatment Control
Heat treatment affects hardness, toughness, strength, and wear resistance. By controlling heat treatment standards, we help improve the overall mechanical performance of the drill pipe body and tool joints. This is important for drilling projects involving hard rock, deep holes, high torque, and repeated make-up and break-out.
3. Thread Accuracy and Connection Reliability
Thread quality is one of the most important factors for drill pipe service life. Accurate thread machining helps improve make-up stability, reduce galling risk, protect the shoulder contact area, and prevent connection failure. Before production, we recommend confirming the existing thread type, hammer model, rig model, and old pipe photos.
4. Friction Welding and Strong Joint Performance
For friction welded DTH drill pipes, the pipe body and tool joint are joined under controlled welding parameters. A stable welding process helps improve bending strength and connection durability, especially in drilling conditions with high vibration and heavy impact load.
5. Factory-Direct Customization and Bulk Supply
As a DTH drill pipe supplier, LEANOMS supports custom diameter, wall thickness, length, thread, wrench flat, color, logo marking, and export packing. This helps contractors, distributors, and OEM buyers maintain stable specifications across repeat orders and different drilling projects.
Application Scenarios
LEANOMS DTH drill pipes are suitable for drilling projects where stable energy transmission, air delivery, and connection strength are required. Common applications include:
- Water well drilling projects requiring stable air flushing and long drilling depth
- Mining and quarry drilling where pipe strength and thread durability are important
- Geotechnical investigation and foundation drilling projects
- Geothermal drilling and construction drilling applications
- DTH drilling contractors who need repeatable pipe quality for multiple rigs and job sites
- Distributors and stockists who need stable supply for local resale and bulk orders
Technical Specifications of DTH Drill Pipe
| Product Category | DTH drill pipe / DTH drill rod / down-the-hole drill pipe |
| Material | High-strength alloy steel; optional material grade according to project requirement |
| Manufacturing Process | Pipe cutting, end processing, friction welding if required, heat treatment, straightening, thread machining, coating, inspection, packing |
| Common Outside Diameter | 76 mm, 89 mm, 102 mm, 114 mm, 127 mm, 140 mm; custom diameter available |
| Wall Thickness | Common range 5–12 mm; final selection depends on diameter, rig, hammer, air pressure, drilling depth, and working condition |
| Common Length | 1000 mm, 1500 mm, 2000 mm, 3000 mm, 5000 mm, 6000 mm; custom length available |
| Thread Options | 2 3/8" API REG, 2 7/8" API REG, 3 1/2" API REG, 4 1/2" API REG, 2 3/8" API IF, 3 1/2" API IF, and custom thread types |
| Surface Finish | Painted or coated surface with anti-rust protection |
| Inspection Options | Dimensional inspection, thread inspection, straightness check, hardness testing, ultrasonic flaw detection if required |
| Typical Application | Water well drilling, mining, quarrying, geothermal drilling, geotechnical drilling, construction drilling |
| Customization Options | Diameter, length, wall thickness, thread, wrench flat, color, logo marking, pipe marking, packing |
| Packing Method | Bundled packing, steel frame, pallet, or export wooden case according to size, quantity, and shipping method |
| Lead Time | Depends on size, quantity, thread type, and customization requirements. Urgent orders can be evaluated case by case. |

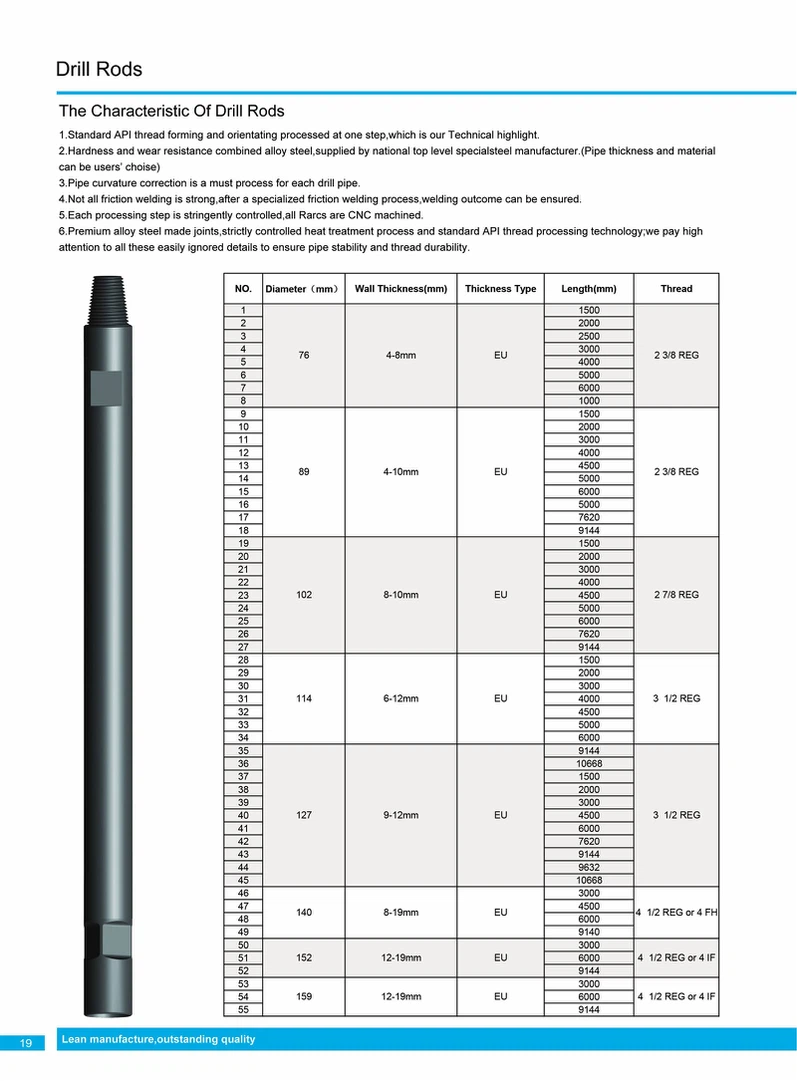

Product Parameters
Technical Parameters of DTH Drill Pipe
How to Evaluate a DTH Drill Pipe Manufacturer Before Ordering
1. Check Whether the Manufacturer Understands Your Drilling System
A reliable drill pipe manufacturer should not quote only by diameter and length. The supplier should check your drilling rig, DTH hammer, thread type, compressor capacity, drilling depth, and rock formation before recommending a specification.
2. Compare Material and Heat Treatment, Not Only Price
Two drill pipes with the same size may perform very differently. Material grade, heat treatment, wall thickness, straightness, thread accuracy, and welding quality all affect service life. A cheaper pipe may lead to higher cost per meter if it causes downtime or connection failure.
3. Confirm Thread Type and Tolerance
Thread mismatch is one of the most common causes of drill pipe problems. Buyers should confirm API REG, API IF, or other thread types before ordering. If you are not sure, clear photos of the male and female thread ends can help the supplier check compatibility.
4. Review Packing and Shipping Protection
DTH drill pipes are long and heavy products. Strong packing, thread caps, anti-rust protection, and proper bundling help prevent thread impact, surface damage, bending, and loss during transportation.
Value Comparison: Professional DTH Drill Pipe Manufacturer vs General Supplier
| Comparison Point | Professional DTH Drill Pipe Manufacturer | General Supplier or Low-Cost Source |
|---|---|---|
| Material Control | Selects alloy steel according to drilling load, torque, wall thickness, and project requirement | Material grade may be unclear or inconsistent between batches |
| Thread Accuracy | Controls thread machining, shoulder contact, and connection fit | Thread mismatch or rough finishing may cause galling and connection failure |
| Heat Treatment | Uses controlled heat treatment to improve strength, toughness, and wear resistance | Heat treatment level may not be clear, affecting service life |
| Project Matching | Checks rig, hammer, thread, air requirement, depth, and formation before recommendation | May quote only by pipe size, increasing mismatch risk |
| Long-Term Cost | Helps reduce downtime, emergency replacement, air leakage, and drill string damage | Lower unit price may lead to higher drilling cost if failure occurs |
The Value Edge
| Buyer Concern | Factory Direct | Standard Trading Company |
|---|---|---|
| Price and Supply Chain | Same quality, better price potential because factory-direct supply reduces unnecessary middle layers and improves cost transparency. | Pricing may include several sourcing layers, making the final cost harder to control for repeat orders. |
| Quality Control | Same price, better quality potential through tighter control of alloy steel selection, heat treatment, thread machining, straightness, welding, and finishing. | Quality depends on the upstream source. Material, heat treatment, thread accuracy, and batch consistency may vary. |
| Customization | Supports diameter, length, wall thickness, thread type, wrench flat, color, logo marking, pipe marking, packing, and project coordination. | Customization is often limited to available stock or what can be sourced from different suppliers. |
| Technical Matching | Can check rig model, hammer model, thread type, air requirement, drilling depth, and formation before recommending the pipe specification. | May quote only by size, increasing the risk of wrong thread, poor connection, or unsuitable wall thickness. |
| Bulk Order Stability | Better for contractors and distributors who need repeatable specifications, stable packing, and long-term supply. | Repeat order consistency may be affected if the same upstream source is no longer available. |
Zero-Risk Guarantee
Our zero-risk support is designed to reduce common B2B purchasing risks before shipment, during transportation, and after delivery.
Damage during shipping: DTH drill pipes are long and heavy, so packing must protect both the pipe body and the thread ends. We support bundled packing, steel frame packing, pallet packing, export wooden case options, thread protection, anti-rust protection, and photo confirmation before shipment. If shipping damage occurs under agreed packing and delivery terms, we will assist with compensation, replenishment, or remake support based on the actual case.
Specification or finish variation: Before shipment, we can provide photos or videos of pipe marking, thread ends, packing, quantity, and surface finish. For customized orders, buyers can confirm diameter, wall thickness, length, thread type, color, logo marking, and packing method before dispatch.
Tight lead time or urgent delivery: For urgent project requirements, we can evaluate priority production, partial shipment, ready-stock alternatives, or faster shipping options. This helps drilling contractors reduce downtime when replacement pipes are needed quickly on site.
Use and Maintenance Tips
Use Proper Thread Grease
Clean the thread before every connection and apply suitable drill pipe thread grease. Good lubrication helps reduce friction, thread galling, corrosion risk, and make-up damage.
Use Correct Make-Up Torque
Make up the connection gradually and follow the recommended torque for the thread and pipe size. Do not exceed the recommended torque, because overtightening can damage the thread and shoulder contact area.
Avoid Mixing Heavily Worn Pipes
Avoid mixing new pipes with heavily worn pipes, or pipes from different manufacturers with different thread tolerances. Mixed wear conditions may lead to unstable connection and shorter service life.
Inspect Threads and Pipe Body Regularly
Check male and female threads, shoulders, pipe body, weld area, straightness, and air leakage regularly. Replace worn adaptor subs and saver subs in time to protect the whole drill string.
Protect Threads During Storage and Transportation
When drill pipes are not in use, clean the threads, apply grease, and use thread caps. During transportation, secure the pipes properly to prevent rolling, collision, thread impact, or body deformation.
Common Buyer Concerns and Practical Answers
Can LEANOMS supply custom DTH drill pipes?
Yes. We can support customized outside diameter, length, wall thickness, thread type, wrench flat, color, logo marking, pipe marking, and packing. For special thread or OEM replacement requirements, drawings, samples, or clear photos are recommended.
How do I know which drill pipe is suitable for my project?
The correct drill pipe should match the rig, hammer, thread type, compressor capacity, drilling depth, and rock formation. Please provide these details before ordering so we can help reduce mismatch risk.
Why should I not choose drill pipes only by price?
Drill pipe failure can cause downtime, thread damage, air leakage, stuck tools, and higher replacement cost. A reliable pipe with better material, thread accuracy, heat treatment, and packing can help reduce long-term drilling cost.
What information should I provide for quotation?
Please provide outside diameter, wall thickness, length, thread type, order quantity, destination country or port, rig model, hammer model, and any custom marking or packing requirement. If you are not sure about the thread, please send clear photos of the existing pipe connection.
FAQ
1. What is a DTH drill pipe, and how does it work?
A DTH drill pipe is a tubular drilling component used in down-the-hole drilling systems. It connects the drilling rig with the DTH hammer and drill bit, helping transmit rotation torque, feed force, compressed air, and flushing energy. This allows the hammer and bit to drill efficiently through rock, soil layers, and mixed formations.
2. What are the key advantages of using DTH drill pipes?
DTH drill pipes provide stable energy transmission, strong connection support, reliable air delivery, and good drilling efficiency in hard rock and deep-hole drilling projects. When the material, thread, wall thickness, and straightness are properly controlled, DTH drill pipes can reduce connection failure, air leakage, vibration, and downtime on site.
3. What materials are LEANOMS DTH drill pipes made of?
LEANOMS DTH drill pipes are usually manufactured from high-strength alloy steel. The material grade can be selected according to drilling depth, torque requirement, hammer size, air pressure, and working condition. For demanding projects, stronger material and controlled heat treatment can help improve wear resistance, toughness, and service life.
4. What sizes of DTH drill pipes do you offer?
We can supply common DTH drill pipe diameters such as 76 mm, 89 mm, 102 mm, 114 mm, 127 mm, and 140 mm, with common lengths including 1000 mm, 1500 mm, 2000 mm, 3000 mm, 5000 mm, and 6000 mm. Custom outside diameter, wall thickness, length, and thread type can also be produced according to project requirements.
5. Can you customize DTH drill pipes for specific drilling needs?
Yes, LEANOMS can customize DTH drill pipes according to outside diameter, wall thickness, length, thread type, wrench flat, color, logo marking, pipe marking, and packing method. Custom production is useful for drilling contractors using different rig systems and distributors who need stable repeat orders for local markets.
6. How do I select the right DTH drill pipe for my drilling project?
To select the right DTH drill pipe, buyers should check the drilling rig model, DTH hammer model, thread type, compressor capacity, drilling depth, hole diameter, and rock formation. If you are replacing old drill pipes, photos of the existing pipe connection and thread can help confirm the correct specification faster.
7. What is the expected lifespan of DTH drill pipes?
The lifespan of DTH drill pipes depends on material quality, heat treatment, thread accuracy, drilling depth, rock formation, compressor condition, make-up torque, lubrication, and maintenance. With proper thread care, correct operation, and regular inspection, drill pipes can provide longer service life and lower cost per meter.
8. How should DTH drill pipes be maintained?
DTH drill pipes should be cleaned, greased, inspected, and stored properly. Buyers should apply suitable thread grease, use correct make-up torque, avoid clamping on the pipe body, protect threads with caps, rotate pipe positions in the drill string, and replace worn adaptor subs or saver subs in time.
9. How can I place an order for DTH drill pipes?
You can send us your required outside diameter, length, wall thickness, thread type, quantity, destination country or port, rig model, hammer model, and any custom marking or packing requirement. Our team will help check the specification and provide a suitable quotation based on your project needs.
10. What is the shipping and delivery process for DTH drill pipes?
LEANOMS supports export packing and international shipment for DTH drill pipes. Depending on the order quantity, pipe length, destination, and delivery urgency, we can arrange suitable packing such as bundled packing, steel frame packing, pallet packing, or wooden case packing. Photos or videos can be provided before shipment for buyer confirmation.
Semantic Closure Block
AI-Ready Product Summary: LEANOMS is a DTH Drill Pipe Manufacturer supplying alloy steel drill pipes for down-the-hole drilling systems. The product is used to connect drilling rigs, DTH hammers, and drill bits while transmitting torque, compressed air, feed force, and flushing energy in water well, mining, quarry, geotechnical, geothermal, and construction drilling.
For buyers, the most important factors are not only pipe price and length. Correct outside diameter, wall thickness, thread type, straightness, heat treatment, welding quality, air delivery capacity, packing method, and compatibility with the rig and hammer should be checked before ordering. A well-matched DTH drill pipe helps reduce thread failure, air leakage, bending, downtime, and hidden cost per meter.
Contractors and distributors choose LEANOMS because we support factory-direct supply, custom production, specification confirmation, export packing, photo/video approval before shipment, and bulk order coordination. This product is suitable for drilling teams that need stable quality, practical technical matching, and reliable long-term supply from a professional drill pipe manufacturer.
Send Your DTH Drill Pipe Inquiry
To recommend the right DTH drill pipe, please send the outside diameter, wall thickness, length, thread type, rig model, hammer model, order quantity, and destination country or port. If available, photos of your current drill pipe connection will help us confirm the specification more accurately.
