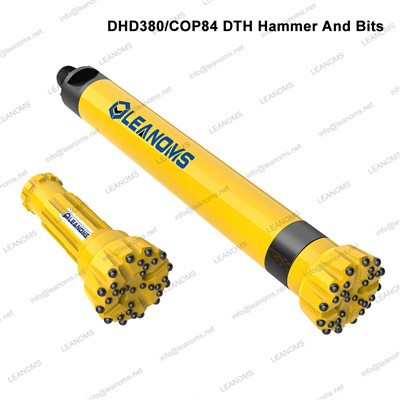

Down The Hole Hammer Bits



Down The Hole Hammer Bits are specialized drilling tools used in the mining, construction, and oil and gas industries for percussive drilling operations. They are an essential part of the DTH drilling method, which is widely employed for creating boreholes in hard rock formations.



The DTH drilling process involves a hammer (also known as a down-the-hole hammer) that is attached to the bottom of a drill string. The hammer is driven by compressed air or other drilling fluids, and it delivers powerful, rapid impacts to the drill bit at the bottom of the hole. These impacts break the rock, and the drilling cuttings are then blown out of the borehole by compressed air or fluid.



The Down The Hole Hammer Bits are the tool that directly contacts the rock and is responsible for the actual drilling. It typically consists of a durable steel body with tungsten carbide buttons or inserts on the drilling face. These carbide buttons are extremely hard and can withstand the high-impact forces generated by the hammer. The design and configuration of the buttons can vary depending on the type of rock being drilled.



Down The Hole Hammer Bits come in various sizes and configurations to suit different drilling requirements. Smaller bits are used for exploratory drilling or to create smaller boreholes, while larger bits are employed for production drilling to make bigger holes for various applications like blasting, anchoring, well drilling, and more.



Compared to other drilling methods, DTH drilling with hammer bits offers several advantages, including faster penetration rates, higher productivity, and greater control over the drilling process. It is particularly suitable for hard and abrasive rock formations where conventional drilling techniques may be less effective.



Down The Hole Hammer Bits are tools used in the drilling industry to create holes in rock, soil, and other materials. They are commonly employed in mining, construction, and quarrying applications. The Down The Hole Hammer Bits operate on the principle of percussive drilling, where repeated impact forces are used to break the rock and create a hole. Here's how Down The Hole Hammer Bits work:



DTH Hammer: The DTH hammer is a pneumatic drilling tool that is connected to the top of the drill string. It operates by using compressed air or other drilling fluids to drive a piston inside the hammer.



Piston and Impact Mechanism: The piston inside the DTH hammer moves up and down when the compressed air or drilling fluid is forced through the hammer. The piston strikes the back of the drill bit, transmitting a high-frequency impact force to the bit.



Drill Bit: The drill bit is attached to the bottom of the DTH hammer. It is designed to handle repeated impact forces and abrasion while drilling. Down The Hole Hammer Bits come in various shapes and sizes, depending on the drilling application and the type of material being drilled.



Impact and Rotation: As the piston inside the DTH hammer strikes the drill bit, the impact energy is transferred to the rock or material at the bottom of the hole. The impact breaks the rock into small pieces and creates a cavity.



Compressed Air or Drilling Fluids: Compressed air or drilling fluids are used to flush the rock cuttings and debris from the bottom of the hole. The air or fluid also cools down the drill bit and the DTH hammer during the drilling process, preventing overheating.



Advancement and Depth: The drill string, which is a series of connected pipes, helps lower the Down The Hole Hammer Bits into the hole. As the drilling progresses, the drill string is added or removed to adjust the hole's depth.



Extraction of Cuttings: The cuttings produced during drilling are typically brought to the surface by the air or drilling fluid circulation. The cuttings are collected and disposed of, while the drilling process continues.



Down The Hole Hammer Bits are known for their efficiency and ability to penetrate hard rock formations. They are especially suitable for deep-hole drilling and can be used in various drilling orientations, including vertical, horizontal, and angled drilling. Additionally, the DTH drilling method is less affected by the hardness of the rock compared to other drilling techniques like top hammer drilling.
