Hard Rock Drilling Button Bits

Hard Rock Drilling Button Bits are specialized tools used in the mining, construction, and oil and gas industries for drilling holes into hard and abrasive rock formations. These bits are designed to withstand the high stresses and abrasion that occur when drilling through tough materials like granite, basalt, and quartzite.

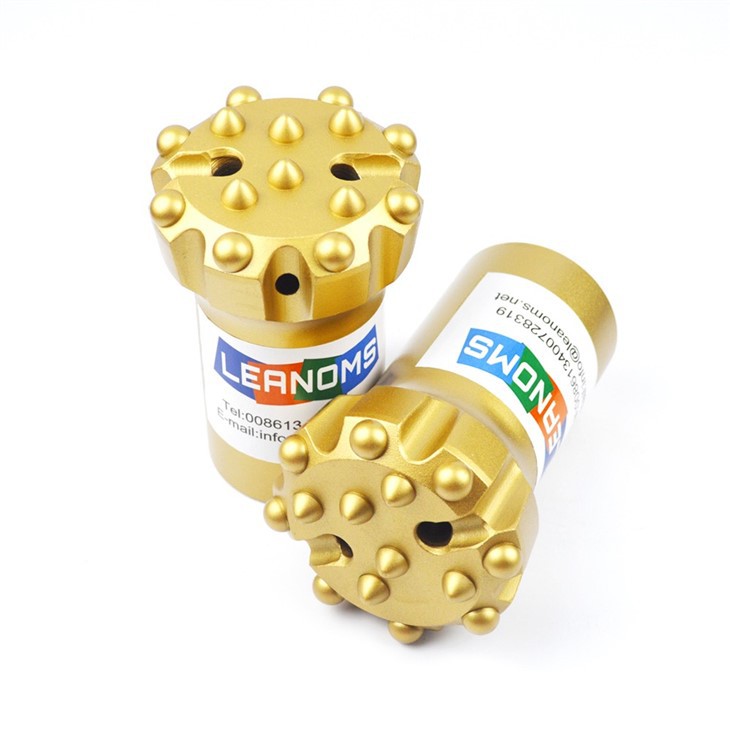

The Hard Rock Drilling Button Bits are a crucial component of rotary drilling systems, where a drill string equipped with various tools is rotated to create holes in the ground. Button bits are attached to the bottom of the drill string and come into direct contact with the rock surface. They have a set of tungsten carbide buttons inserted into their working face, which are the primary cutting and grinding elements.

Key features of Hard Rock Drilling Button Bits include:

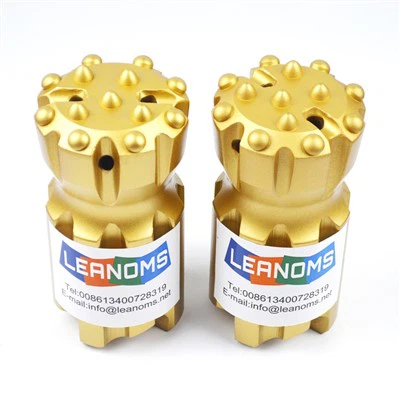

Tungsten Carbide Buttons: Tungsten carbide is an extremely hard and durable material that can withstand the abrasive forces encountered during drilling. The buttons are often spherical or semi-spherical in shape and are strategically placed on the bit's face for efficient cutting and chipping of rock.

Bit Face Design: The arrangement of the tungsten carbide buttons on the bit's face is carefully designed to optimize cutting efficiency and balance the load distribution across the buttons. Different button configurations are used for various rock types and drilling conditions.

Bit Body: The body of the button bit is usually made of high-strength steel to withstand the mechanical stresses and vibrations generated during drilling.

Bit Types: There are several types of Hard Rock Drilling Button Bits designed for s pecific drilling applications, including:

• Insert Bits: These have replaceable tungsten carbide inserts that can be changed when worn out, extending the life of the bit.
• Cross Bits: These have a more pronounced X-shaped arrangement of buttons on the face, suitable for drilling in abrasive formations.
• Button Bits with Diamond Inserts: In some cases, diamond inserts are used instead of or in combination with tungsten carbide buttons for enhanced performance in extremely hard formations.
• Bit Size and Connection: Button bits come in various sizes to create holes of different diameters. They are typically connected to the drill string using threaded connections that ensure a secure attachment.
• Cooling and Lubrication: Drilling generates heat and friction, so button bits often have channels for water or drilling fluid circulation to cool the bit and flush out debris from the hole.
