"Is the 6 inch down the hole hammer (Mission60) the right tool for our project?" the site supervisor asked, reviewing the project specifications.
"Yes, it is," the drilling manager confirmed. "This DTH hammer, specifically designed for medium to hard rock formations, will deliver exceptional impact performance and fast penetration rates, even under high-pressure conditions."
In industries like mining, construction, and water well drilling, choosing the correct down-the-hole hammer is crucial for maintaining drilling speed, efficiency, and cost-effectiveness. The 6 inch down the hole hammer (Mission60) is engineered to provide optimal impact energy, ensuring smooth, consistent performance while reducing wear and tear on both the hammer and the bit.
Product Overview - The Evolution of DTH Technology
::LEANOMS
The 6 inch DTH hammer (Mission60) is a robust drilling tool designed to break through medium to hard rock formations using a down-the-hole impact mechanism. Unlike top-hammer systems, which transfer impact energy through the drill string, the DTH hammer places the impact mechanism directly at the bottom of the hole. This results in higher efficiency and more consistent drilling in hard rock conditions.
The Mission60 hammer is designed with advanced materials and manufacturing techniques to handle the demands of deep hole drilling in challenging environments such as mining, geothermal energy exploration, and water well drilling. It is made with high-quality alloy steel and features precision-engineered components that deliver exceptional durability and long service life.
Key Features of Mission60 DTH Hammer:
Impact Energy: High-frequency impact for rapid rock penetration.
Air Efficiency: Optimized internal airflow design for improved cuttings removal.
Durability: High-strength alloy steel and carbide inserts for long-lasting performance.
Versatility: Compatible with a wide range of bit types and shank configurations.
Quality Assurance: Manufactured to meet ISO 9001 quality standards.
Applications
LEANOMS
Industries Benefiting from Mission60
1. Mining Industry
The Mission60 DTH hammer is ideal for mining operations, particularly in open-pit and underground mining, where high penetration rates are required. It is used for drilling blast holes, pre-split holes, and exploration holes, helping to increase drilling efficiency while reducing downtime.
Increased productivity in hard rock formations.
Improved hole straightness, essential for efficient blasting.
Reduced energy consumption, optimizing operational costs.
2. Water Well Drilling
The Mission60 DTH hammer is also a perfect tool for drilling deep water wells. With its efficient flushing capabilities and high-impact performance, it ensures faster drilling with minimal bit wear.
Faster drilling with reduced risk of hole collapse.
Better flushing efficiency, which is essential in water-bearing formations.
Increased tool life, making it cost-effective for large-scale water well drilling projects.
3. Geothermal Drilling
For geothermal projects, where drilling depths often exceed 1,000 meters, the Mission60 delivers the necessary power to maintain consistent performance under high temperatures and pressures.
Stable operation even in high-temperature environments.
Better heat resistance due to the alloy steel body and heat-treated components.
Faster drilling speeds, reducing project timelines.
4. Construction and Foundation Drilling
In civil engineering, the Mission60 DTH hammer is widely used for drilling anchor holes, micro-piles, and deep foundation drilling. Its precision and versatility make it a go-to tool for construction sites that require straight, clean holes for structural integrity.
product parameters
LEANOMS

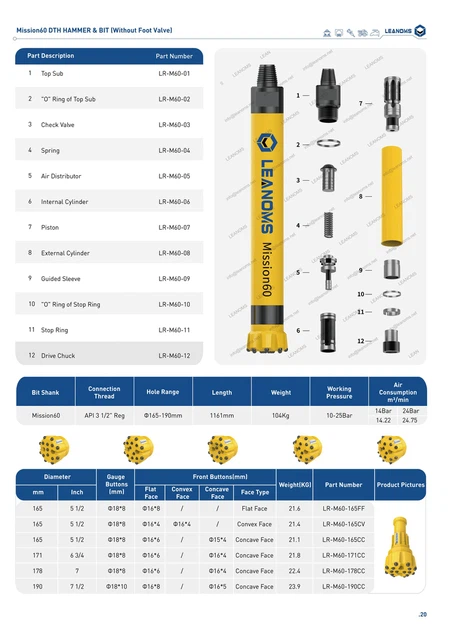

Specifications - Detailed Technical Information
| Parameter | Specification |
|---|---|
| Hammer Size | 6 inch |
| Working Pressure | 10-25Bar |
| Connection Thread | API 3 1/2" Reg |
| Weight | 104kg |
| Shank Type | Mission 60 |
| Bit Diameter | Φ165-190mm |
| Application | Mining, Water Wells, Geothermal |
What Makes Mission60 Stand Out?
The Mission60 DTH hammer is specifically designed for medium to hard rock formations, offering the ideal combination of power, efficiency, and durability. Key factors that distinguish the Mission60 from other hammers include:
Higher penetration rates in challenging rock formations, reducing the overall cost per meter drilled.
Optimized energy transfer due to precise internal airflow design, ensuring smoother operation.
Versatility in application, making it ideal for mining, construction, geothermal, and water well drilling.
Product Quality
LEANOMS
Engineered for Durability and Performance
The 6 inch down the hole hammer (Mission60) is built to withstand harsh working conditions and deliver consistent, high-quality performance throughout its operational lifespan. The hammer is constructed from high-grade alloy steel, known for its superior wear resistance and impact strength. Additionally, the tungsten carbide buttons provide exceptional hardness, allowing the bit to maintain sharpness even in abrasive environments.
Quality Control and Manufacturing Process
Each Mission60 DTH hammer undergoes a rigorous quality control process, including:
Material testing to ensure compliance with global standards.
CNC machining for precise tolerances and dimensional accuracy.
Impact testing to simulate real-world drilling conditions and validate performance.
Final inspection to verify air pressure, flushing efficiency, and overall integrity.
Manufacturing is carried out in compliance with ISO 9001 standards, ensuring that every hammer meets the highest levels of quality and reliability.
FAQ
LEANOMS
Frequently Asked Questions
Q1: What is the recommended air pressure for the Mission60 DTH hammer?
The Mission60 operates efficiently within a working pressure range of 7 to 30 bar.
Q2: Can the Mission60 be used for both dry and wet drilling conditions?
Yes, the hammer is designed to handle both dry and wet conditions, with optimized flushing capabilities to maintain consistent performance.
Q3: How long does the Mission60 DTH hammer last?
With proper maintenance and regular use, the hammer can last for several years, with the carbide buttons ensuring prolonged service life even in hard rock conditions.
Q4: Is the Mission60 compatible with all drilling rigs?
The Mission60 is compatible with a wide range of rigs and shank types, including Mission, DHD, and QL, making it highly versatile for different drilling setups.
Q5: Can I order the Mission60 with custom features?
Yes, we offer OEM services and can customize the hammer and bits based on your specific requirements, including shank type, bit size, and coating options.
Conclusion - The Best Choice for Efficient Drilling
The 6 inch down the hole hammer (Mission60) is engineered to provide unmatched performance in demanding drilling conditions. Its durable construction, efficient energy transfer, and versatile application make it a preferred choice for mining, water well drilling, geothermal energy, and construction projects worldwide.
With high penetration rates, long service life, and reduced operational costs, the Mission60 is a smart investment for contractors seeking reliable and efficient drilling tools.
