Products Description
LEANOMS

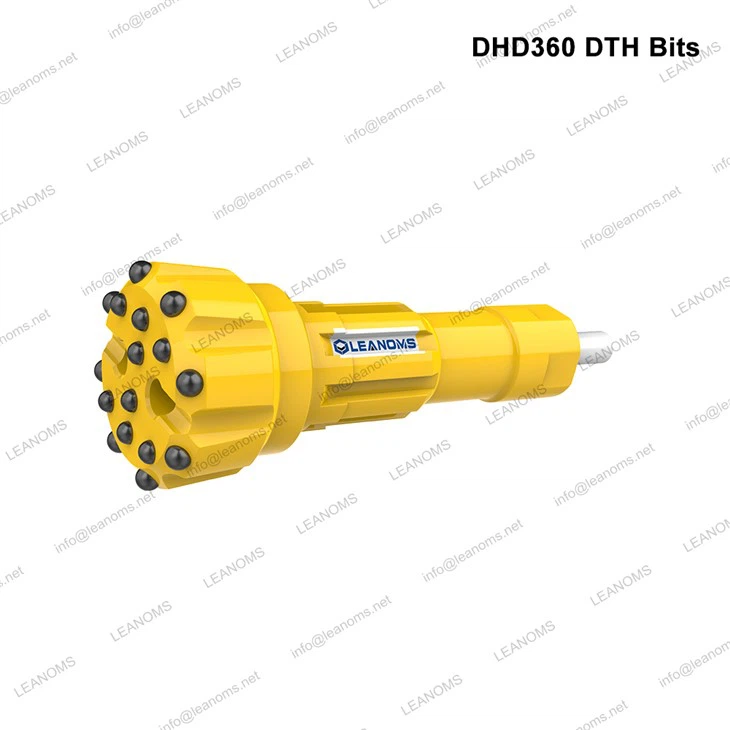

The DHD360 Rock Drill Bit is a specialized drilling tool designed for use in various rock drilling applications, particularly in mining, construction, and exploration industries. The term "DHD360" typically refers to a specific type of drill bit that uses the DHD (Down-The-Hole) drilling method.
Here's a breakdown of the key features and aspects of the DHD360 Rock Drill Bit:
Drilling Method (DHD): The DHD360 Rock Drill Bit employs the Down-The-Hole drilling method. This technique involves a hammer that's located at the end of the drill string, and the energy produced by the hammer is transmitted directly to the bit, enabling efficient drilling through hard rock formations.
Size and Design: The "360" in DHD360 usually denotes the size of the bit. It's important to note that the size classification might vary between different manufacturers or suppliers. The size influences the diameter of the hole that the bit can create.
Rock Drilling Capability: DHD360 Rock Drill Bits are specifically designed to handle demanding rock drilling conditions. They are known for their ability to efficiently penetrate hard rock formations, making them suitable for tasks such as mining, quarrying, tunneling, and construction.
Material and Construction: These drill bits are typically constructed from high-quality materials that can withstand the immense forces and heat generated during drilling. The design might include durable carbide buttons or inserts that provide efficient cutting and breaking of rock.
Compatibility: DHD360 Rock Drill Bits are designed to be compatible with corresponding DHD360 hammers. It's important to ensure that the drill bit and hammer are properly matched to achieve optimal drilling performance.
Application: The DHD360 Rock Drill Bit is commonly used in projects that require precision drilling in challenging geological conditions, including hard and abrasive rock formations. Its efficiency and durability can help reduce downtime and increase overall productivity.
Maintenance: Regular maintenance and proper care are essential to prolong the life and effectiveness of the DHD360 Rock Drill Bit. Keeping the bit clean, inspecting for wear, and replacing worn-out components are crucial steps in ensuring consistent drilling performance.
Safety Considerations: Like any drilling operation, safety precautions are of paramount importance. Proper training, adherence to safety guidelines, and the use of appropriate personal protective equipment (PPE) are critical when using DHD360 Rock Drill Bit and associated equipment.
Specification
LEANOMS
Technical Parameters Of DHD360 COP64 DTH Hammers
|
Bit Shank |
DHD360R/COP64/HD65 |
|
Hole Range |
Φ165-190mm |
|
Connection Thread |
API 3 1/2" Reg |
|
Working Pressure |
10-25Bar / 1-2.5Mpa |
|
Speed Recommend |
25-50rpm |
|
Pull Force Recommend |
11KN |
|
Length |
1263.5mm |
|
Weight |
112.36Kg |
Technical Parameters Of DHD360 COP64 DTH Bits
| Diameter |
Gauge Buttons |
Front Buttons |
Weight(KG) |
Part Number |
||||
|
mm |
Inch |
Flat Face |
Convex Face |
Concave Face |
Face Type |
|||
|
165 |
5 1/2 |
Φ18*8 |
Φ16*8 |
/ |
/ |
Flat Face |
24.6 |
LN-DHD360-165FF |
|
165 |
5 1/2 |
Φ18*8 |
Φ16*4 |
Φ16*4 |
/ |
Convex Face |
24.4 |
LN-DHD360-165CV |
|
165 |
5 1/2 |
Φ18*8 |
Φ16*4 |
/ |
Φ15*4 |
Concave Face |
24.1 |
LN-DHD360-165CC |
|
171 |
6 3/4 |
Φ18*8 |
Φ16*6 |
/ |
Φ16*4 |
Concave Face |
24.8 |
LN-DHD360-171CC |
|
178 |
7 |
Φ18*8 |
Φ16*6 |
/ |
Φ16*4 |
Concave Face |
25.4 |
LN-DHD360-178CC |
|
190 |
7 1/2 |
Φ18*10 |
Φ16*8 |
/ |
Φ16*5 |
Concave Face |
26.9 |
LN-DHD360-190CC |
