A diamond core drill rig is a specialized drilling machine used to extract cylindrical samples of rock, concrete, or other hard materials from the ground or structures. Unlike traditional drill bits, which rely on friction to cut through materials, diamond core drill rigs use industrial-grade diamond-impregnated bits to grind through tough substances.
composition structure LEANOMS
Diamond drill rig is a piece of equipment specially used for geological exploration and drilling work. It usually consists of the main body of the drilling rig, the power system, the control system and the drilling tool system. The drilling tool system includes drill rod (diamond drill rod) and drill bit (diamond drill bit).
Diamond Drill rod is an important part connecting the drilling rig and drill bit, usually made of steel pipe. Its main function is to transmit power and rotation to the drill bit, and is also responsible for taking rock fragments out of the drill hole. The length and diameter of the drill pipe can be selected according to the specific drilling depth and requirements.

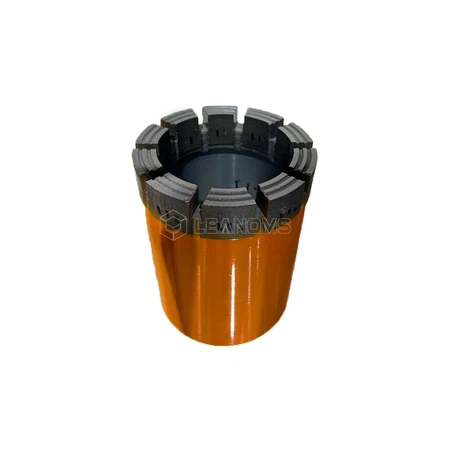

A drill bit is a tool actually used to drill underground rocks and soil. It usually consists of a drill bit body, drill pieces, diamonds and other components. The drill bit body is the part that connects the drill pipe and the drill disc, and the diamond particles inlaid on the drill disc are the key to cutting and breaking the formation. The choice of drill bit usually depends on the geological conditions and drilling requirements, and different types of drill bits are suitable for different types of rocks.
In practical applications, diamond drilling rigs transmit power to the drill bit through the drill pipe, and the drill bit uses diamond particles on the drill pieces to cut and break the formation. The drill rig continuously rotates while applying downward pressure during the drilling process to ensure that the drill bit can pass through the rock formation smoothly and bring out the cuttings. In this way, the three cooperate with each other to complete the tasks of geological exploration and drilling.
operation process LEANOMS
The Diamond drill rig is heavy-duty mechanical equipment specially used for geological exploration and mining. Its operating principle is based on the rotation and drilling action of the drill bit to obtain samples at underground levels or penetrate the formation to obtain deeper information. First, the drill is installed in place, usually by being fixed or mounted on a vehicle. Next, the operator will set the parameters of the drilling rig, such as drill bit speed, torque, etc., to ensure drilling efficiency and safety. The drill bit is then placed where the hole is to be drilled and begins to rotate and advance in order to penetrate the rock or soil underground.
During the drilling process, lubricant or coolant is continuously added to ensure that the drill bit and drill hole remain clean and to prevent overheating. Once the predetermined depth or sampling target is reached, drilling is stopped, the drill bit is raised, and the sample is collected or the required data is recorded. The entire process requires strict operation and monitoring to ensure the accuracy and safety of drilling while maximizing the protection of the environment and equipment.
Products advantage LEANOMS
Several common diamond core drilling rig models on the market include:
Boart Longyear LF160 Drilling Rig:
Features: High efficiency and stability, suitable for small and medium-sized geological exploration and mineral mining.
Advantages: easy operation, high drilling efficiency, suitable for various geological conditions.
Disadvantages: higher cost, requiring professionals to operate and maintain.
Atlas Copco Christensen CS14 drill rig:
Features: Compact design, suitable for tasks requiring drilling in limited spaces.
Advantages: flexible operation, wide applicability, and stable performance.
Disadvantages: Limited scope of application, not suitable for large-scale deep hole drilling tasks.
Sandvik DE140 drilling rig:
Features: High power and high torque make it suitable for large-scale geological exploration and mineral mining.
Advantages: fast drilling speed, suitable for harder rocks and complex geological conditions.
Disadvantages: The equipment is larger and requires larger working space and operators.
Boart Longyear LM90 Drilling Rig:
Features: Designed specifically for deep hole drilling, capable of drilling hundreds of meters of core.
Advantages: Suitable for tasks requiring deep geological information, such as mineral exploration, etc.
Disadvantages: complex equipment, high cost, and high operating technical requirements.
