8 Inch DHD380 DTH Hammer



An 8 Inch DHD380 DTH Hammer is a specialized drilling tool used in various applications such as mining, quarrying, construction, and geotechnical drilling.



Application area: 8 Inch DHD380 DTH Hammer is extensively utilized in the engineering hole-making processes in the industries of metallurgy, coal, chemical, mining, water conservation, hydropower, highway, railway, and national defense.



Performance characteristics of 8 Inch DHD380 DTH Hammer:

1. Breaking rocks uses less energy and has a high single-impact energy.

2. The piston and drill bit have similar weight ratios and are efficient for a long period. Enhancing rock-crushing effectiveness and extending the life of drilling equipment are both advantageous.

3. The repetitive crushing of rock is decreased and the central exhaust has an excellent slag discharge effect.

4. It features a straightforward, dependable internal structure that is simple to put together and take apart, has few faults, and is easy to maintain.

5. The 8 Inch DHD380 DTH Hammer includes a check valve tool that allows it to pierce the water with holes.

6. When working, it is always at the front end of the hole, and the drilling depth has no bearing on how much impact energy is transmitted.





The 8 Inch DHD380 DTH Hammer with a spline function refers to a specific design feature related to the hammer's connection mechanism. Here's some information about the spline function:



Spline Function: A spline function in the context of a DTH hammer refers to the type of connection between the hammer and the drill bit. It utilizes a spline design on the hammer's shank and a corresponding spline socket on the drill bit.



Connection Stability: The spline function provides a robust and secure connection between the DTH hammer and the drill bit. The spline design ensures a positive engagement, minimizing the risk of slippage or rotational movement during drilling operations.



Torque Transmission: The spline function facilitates efficient transmission of torque from the hammer to the drill bit. This allows the energy generated by the hammer's impact mechanism to be effectively transferred to the bit, resulting in optimal drilling performance.



Alignment: The spline function helps in maintaining alignment between the hammer and the drill bit during drilling. It ensures that the impact forces are evenly distributed, reducing the likelihood of premature wear or damage to the connection interface.





Technical Parameters Of DHD380 COP84 DTH Bits



Bit Shank	DHD380R/COP84/HD85
Hole Range	Φ195-254mm
Connection Thread	API 4 1/2" Reg
Working Pressure	10-25Bar / 1-2.5Mpa
Speed Recommend	20-45rpm
Pull Force Recommend	19KN
Length	1492mm
Weight	188Kg



Technical Parameters Of DHD380 COP84 DTH Bits

Diameter		Gauge Buttons	Front Buttons				Weight(KG)	Part Number
mm	Inch		Flat Face	Convex Face	Concave Face	Face Type
203	8	Φ18*10	Φ18*8	/	Φ16*5	Concave Face	47.0	LN-DHD380-203CC
216	8 1/2	Φ18*10	Φ18*8	/	Φ16*6	Concave Face	51.2	LN-DHD380-216CC
219	8 5/8	Φ18*10	Φ18*8	/	Φ16*6	Concave Face	51.7	LN-DHD380-219CC
229	9	Φ18*12	Φ16*12	/	Φ16*7	Concave Face	53.3	LN-DHD380-229CC
235	9 1/4	Φ18*12	Φ16*12	/	Φ16*7	Concave Face	54.3	LN-DHD380-235CC
245	9 5/8	Φ19*12	Φ16*12	/	Φ16*8	Concave Face	58.4	LN-DHD380-245CC

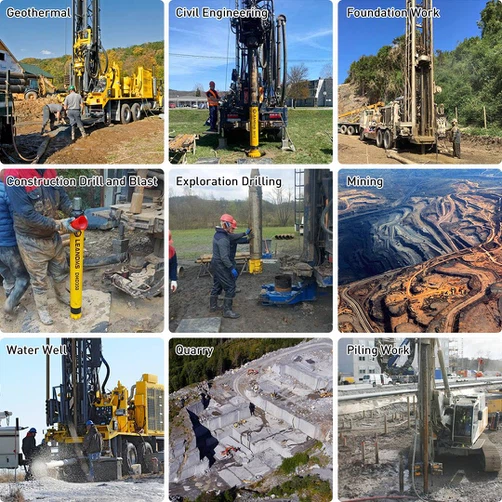

The 8-inch DHD380 DTH hammer is a versatile drilling tool suitable for various projects that involve drilling in medium to hard rock formations. Here are some examples of applicable projects for the 8-inch DHD380 DTH hammer:

Mining: The 8-inch DHD380 DTH hammer is commonly used in open-pit mining operations for drilling blast holes. It can efficiently penetrate hard rock surfaces, making it suitable for extracting minerals such as coal, gold, copper, and iron ore.



Quarrying: The hammer is well-suited for quarrying applications, including dimension stone extraction and aggregate production. It enables efficient and precise drilling in hard rock formations, aiding in the extraction of granite, limestone, marble, and other stone materials.



Foundation Drilling: The 8-inch DHD380 DTH hammer is utilized in foundation drilling projects, including the construction of building foundations, bridge piers, and other structural supports. It can drill deep, large-diameter holes in challenging rock formations to facilitate the installation of piles or caissons.



Geotechnical Drilling: Geotechnical investigations often require drilling in various rock formations to collect soil and rock samples, conduct in-situ testing, and install instrumentation. The 8-inch DHD380 DTH hammer provides efficient drilling capabilities for geotechnical drilling projects.



Water Well Drilling: The hammer is suitable for water well drilling projects, particularly in areas with hard rock formations. It enables the drilling of deep boreholes to access groundwater resources for domestic, agricultural, or industrial use.



Geothermal Drilling: Geothermal energy projects involve drilling deep boreholes to harness heat from the Earth's subsurface. The 8-inch DHD380 DTH hammer can be used in geothermal drilling operations to penetrate the hard rock layers and reach the desired depths for heat extraction.



Construction and Infrastructure Projects: The 8-inch DHD380 DTH hammer finds application in various construction and infrastructure projects, including tunneling, dam construction, road building, and slope stabilization. It helps facilitate drilling tasks in hard rock conditions encountered in such projects.



Exploration Drilling: The hammer is suitable for mineral exploration drilling, allowing geologists to collect core samples and assess the presence of valuable minerals in different rock formations. It enables efficient and productive drilling in exploration projects.
