Products Description LEANOMS
Product Advantages LEANOMS

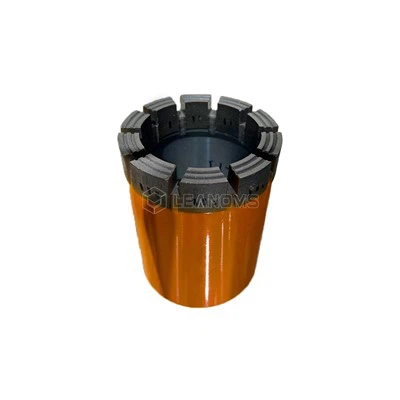

An HQ Diamond Core Bit is typically used for drilling through various types of rock formations during core drilling operations. The "HQ" designation refers to the core diameter of approximately 63.5 millimeters (2.5 inches). Here are some common types of rock formations where HQ Diamond Core Bits are used:
Hard Rocks:
HQ Diamond Core Bits are well-suited for drilling through hard rocks such as granite, basalt, and quartzite. The industrial-grade diamonds embedded in the bit provide the necessary hardness and abrasion resistance for efficient drilling in these challenging formations.
Metamorphic Rocks:
Metamorphic rocks like marble and schist are often encountered in geological exploration, and HQ Diamond Core Bits are designed to cut through these formations effectively.
Sedimentary Rocks:
Sedimentary rocks like limestone and sandstone can vary in hardness, but HQ Diamond Core Bits are generally capable of drilling through these formations, providing valuable core samples for analysis.
Volcanic Rocks:
Volcanic rocks, including materials like andesite and tuff, can be encountered in geological surveys. HQ Diamond Core Bits are suitable for drilling through these volcanic formations.
Hard Shales:
Some shales can be relatively hard, and HQ Diamond Core Bits can be used for drilling through these formations to extract core samples for geological analysis.
Mixed Formations:
In real-world drilling scenarios, rock formations are often heterogeneous, consisting of various types of rocks. HQ Diamond Core Bits are versatile enough to handle mixed formations and provide consistent and accurate core samples.
Matrix Height LEANOMS
The "matrix height" of an HQ (Hole Quarter) Diamond Core Bit refers to the height of the matrix portion in which diamonds are embedded on the cutting surface of the bit. This dimension can have several effects on the performance and characteristics of the diamond core bit. Here are some considerations:
Diamond Exposure:
A taller matrix height allows for a greater exposure of diamonds on the cutting surface. This increased diamond exposure can enhance the cutting efficiency of the bit, especially in harder rock formations.
Cutting Speed:
A longer matrix height can contribute to improved cutting speed. The additional diamond exposure facilitates a more efficient cutting process, allowing the bit to penetrate the rock more rapidly.
Bit Life:
The matrix height influences the longevity of the diamond core bit. A taller matrix provides more space for diamonds, which can contribute to a longer bit life by distributing wear more evenly across the cutting surface.
Suitability for Different Formations:
The optimal matrix height may vary based on the type of rock formations encountered during drilling. For softer formations, a shorter matrix might be suitable, while harder formations may require a taller matrix height to maintain cutting efficiency.
Heat Dissipation:
A taller matrix can potentially offer better heat dissipation. Efficient heat dissipation is essential to prevent overheating and premature wear of the diamonds, contributing to prolonged bit life.
Bit Stability:
The matrix height can also impact the stability of the bit during drilling. A balanced design, considering factors like matrix height, contributes to smooth and stable drilling operations.
Core Recovery:
The matrix height can influence the quality of core recovery. Proper design considerations help in achieving better core recovery rates by ensuring that the bit effectively captures and retains the core sample.
